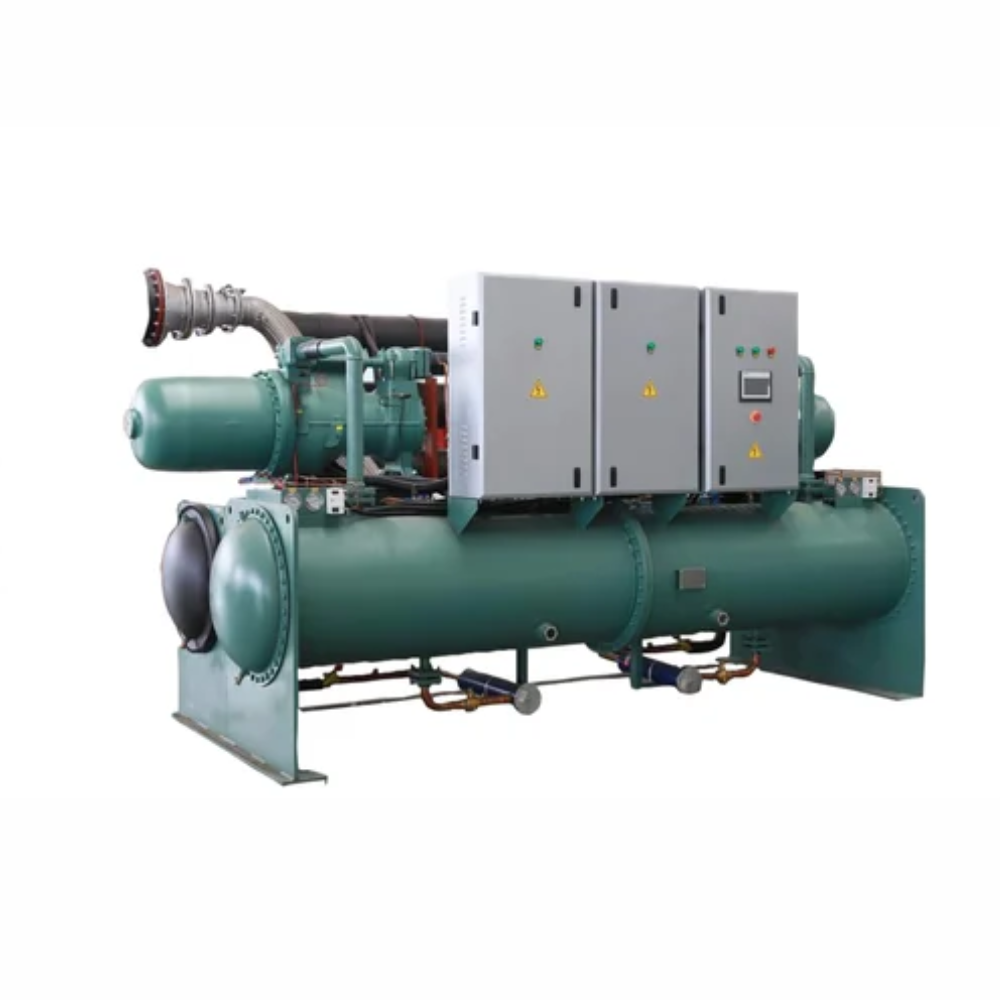

Water Cooled Screw Chillers,

Compressor:

• Semi-hermetic twin screw type
• High efficiency, low noise, continuous operation
• Capacity control: 25% ~ 100% step or stepless

Condenser (Water-Cooled):

• Shell & tube type condenser
• Copper tubes with aluminum fins (optional)
• Cooling water inlet/outlet temp: 30°C / 35°C

Evaporator:

• Shell & tube or flooded type evaporator
• Chilled water outlet temp: 7°C (adjustable 5°C ~ 15°C)
• Chilled water flow rate as per tonnageRefrigerant Options:
  • R134a / R407C / R404A / R513A (eco-friendly refrigerants)

  Cooling Capacity:

  • 175 kW to 3500 kW (depends on model)

  Power Supply:

  • 380V / 400V / 415V, 50Hz, 3 Phase (other voltages on request)

  Controls:

  • PLC / Microprocessor control panel
  • Digital display for temperature, pressure & alarms
  • Automatic safety protections (high/low pressure, overload, water flow, etc.)

  Operating Conditions:

  • Ambient temperature: up to 45°C
  • Cooling tower water required
